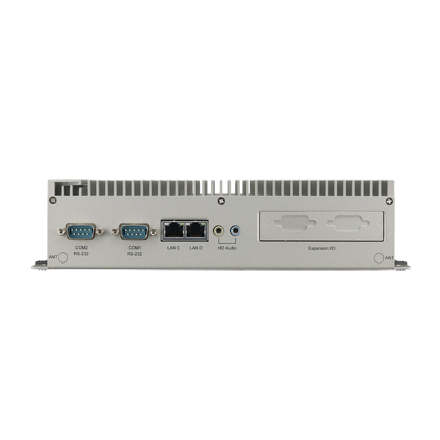

UNO-2483G

Intel? Core? i7/i3/Celeron Regular-Size Automation Computer w/ 4 x GbE, 2 x mPCIe, HDMI/VGA

Main Features

4th Generation Intel® Core™ i7/i3/Celeron Processors up to 1.9GHz with 4GB/8GB DDR3L Memory
4 x GbE, 4 x USB 2.0/3.0, 2 x RS-232, 2 x RS-422/485, 1 x VGA, 1 x HDMI, Audio
Comprehensive Palm, Small, Regular-size form-factor
Compact with Fanless Design
Rubber Stopper Design with Captive Screw
Dual HDD/SSD support with RAID 0/1 in regular-size
Diverse system IO and Isolated Digital IO by iDoor Technology
Supports Fieldbus Protocol by iDoor Technology
3G/GPS/GPRS/WiFi Communication by iDoor Technology
Supports MRAM by iDoor Technology
Chassis Grounding Protection
LAN Redundancy (Teaming)
Fault-Protected RS-485 Transceivers With Extended Common-Mode Range
數據表(PDF) 技術資料下載

規格表

		UNO-2483G-434AE	UNO-2483G-474AE	UNO-2483G-4C3AE
Environment	Ingress Protection	IP40	IP40	IP40
	Vibration Protection	Operating, IEC 60068-2-64, 2Grms, random, 5 ~ 500Hz, 1hr/axis (mSATA). Operating, IEC 60068-2-64, 0.7Grms, random, 5 ~ 500Hz, 1hr/axis (HDD)	Operating, IEC 60068-2-64, 2Grms, random, 5 ~ 500Hz, 1hr/axis (mSATA). Operating, IEC 60068-2-64, 0.7Grms, random, 5 ~ 500Hz, 1hr/axis (HDD)	Operating, IEC 60068-2-64, 2Grms, random, 5 ~ 500Hz, 1hr/axis (mSATA). Operating, IEC 60068-2-64, 0.7Grms, random, 5 ~ 500Hz, 1hr/axis (HDD)
	Operating Temperature	-20 ~ 60°C (-4 ~ 140°F) @ 5 ~ 85% RH with 0.7m/s airflow	-20 ~ 60°C (-4 ~ 140°F) @ 5 ~ 85% RH with 0.7m/s airflow	-20 ~ 60°C (-4 ~ 140°F) @ 5 ~ 85% RH with 0.7m/s airflow
	Relative Humidity	10 ~ 95% @ 40° C (non-condensing)	10 ~ 95% @ 40° C (non-condensing)	10 ~ 95% @ 40° C (non-condensing)
	Shock Protection	Operating, IEC 60068-2-27, 50G, half sine, 11ms	Operating, IEC 60068-2-27, 50G, half sine, 11ms	Operating, IEC 60068-2-27, 50G, half sine, 11ms
	Storage Temperature	- 40 ~ 85°C ( -40 ~ 185°F)	- 40 ~ 85°C ( -40 ~ 185°F)	- 40 ~ 85°C ( -40 ~ 185°F)
I/O Interface	Audio	Line-In, Line-Out	Line-In, Line-Out	Line-In, Line-Out
	Displays	1 x VGA, supports 1920x1200@60Hz 24bpp, 1 x HDMI 1.4a, supports 3200x2000@60Hz 24bpp	1 x VGA, supports 1920x1200@60Hz 24bpp, 1 x HDMI 1.4a, supports 3200x2000@60Hz 24bpp	1 x VGA, supports 1920x1200@60Hz 24bpp, 1 x HDMI 1.4a, supports 3200x2000@60Hz 24bpp
	Grounding Protection	Chassis Grounding	Chassis Grounding	Chassis Grounding
	LAN	4 x RJ45, 10/100/1000 Mbps IEEE 802.3u 1000Base-T Fast Ethernet	4 x RJ45, 10/100/1000 Mbps IEEE 802.3u 1000Base-T Fast Ethernet	4 x RJ45, 10/100/1000 Mbps IEEE 802.3u 1000Base-T Fast Ethernet
	Power Connector	1 x 3 Pins, Terminal Block	1 x 3 Pins, Terminal Block	1 x 3 Pins, Terminal Block
	Serial Ports	2x RS-232, DB9, 50~115.2kbps, 2x RS-422/485, DB9, auto flow control, 50~115.2kbps	2x RS-232, DB9, 50~115.2kbps, 2x RS-422/485, DB9, auto flow control, 50~115.2kbps	2x RS-232, DB9, 50~115.2kbps, 2x RS-422/485, DB9, auto flow control, 50~115.2kbps
	USB Port	4 x USB Ports (2 x USB2.0, 2 x USB3.0 compliant)	4 x USB Ports (2 x USB2.0, 2 x USB3.0 compliant)	4 x USB Ports (2 x USB2.0, 2 x USB3.0 compliant)
System Hardware	Expansion	2 x Full-size mPCIe slot, mPCIe 2.0	2 x Full-size mPCIe slot, mPCIe 2.0	2 x Full-size mPCIe slot, mPCIe 2.0
	LED Indicators	LEDs for Power, battery, LAN (Active, Status), Tx/Rx and HDD	LEDs for Power, battery, LAN (Active, Status), Tx/Rx and HDD	LEDs for Power, battery, LAN (Active, Status), Tx/Rx and HDD
	Storage	One mSATA, Two drive bay for SATA 2.5" HDD (Compatible with 9.5mm height HDD), CFast drive by iDoor Technology (Optional)	One mSATA, Two drive bay for SATA 2.5" HDD (Compatible with 9.5mm height HDD), CFast drive by iDoor Technology (Optional)	One mSATA, Two drive bay for SATA 2.5" HDD (Compatible with 9.5mm height HDD), CFast drive by iDoor Technology (Optional)
	Graphics Engine	Intel® HD Graphics 5000/4400	Intel® HD Graphics 5000/4400	Intel® HD Graphics 5000/4400
	Memory	On-board 8GB DDR3L 1333/1600 MHz	On-board 8GB DDR3L 1333/1600 MHz	On-board 4GB DDR3L 1333/1600 MHz
	Processor	Intel® 4th Gen Core™ i3-4010U ULT 1.7 GHz Dual Core, 3MB L2	Intel® Core™ i7-4650U ULT 1.7GHz Haswell Dual Core, 4MB L2	Intel® 4th Gen Celeron® 2980U ULT 1.6 GHz Dual Core, 2MB L2
General	Mounting	Stand, Wall, VESA (Optional)	Stand, Wall, VESA (Optional)	Stand, Wall, VESA (Optional)
System Hardware	System Chip	Integrated Intel 8 Series Chipset	Integrated Intel 8 Series Chipset	Integrated Intel 8 Series Chipset
General	OS Support	Microsoft® Windows 7/8	Microsoft® Windows 7/8	Microsoft® Windows 7/8
	Power Consumption	28W (Typical), 72W(Max)	28W (Typical), 72W(Max)	28W (Typical), 72W(Max)
	Power Requirement	24VDC ± 20%	24VDC ± 20%	24VDC ± 20%
	Weight (Net)	1.6kg (3.5lbs)	1.6kg (3.5lbs)	1.6kg (3.5lbs)
System Hardware	BIOS	AMI UEFI 128Mbit Flash BIOS	AMI UEFI 128Mbit Flash BIOS	AMI UEFI 128Mbit Flash BIOS
System Hardware	Watchdog Timer	Programmable 256 levels timer interval, from 1 to 255 sec	Programmable 256 levels timer interval, from 1 to 255 sec	Programmable 256 levels timer interval, from 1 to 255 sec
General	Certifications	CE, FCC, UL, CCC, BSMI	CE, FCC, UL, CCC, BSMI	CE, FCC, UL, CCC, BSMI
	Dimensions (W x H x D)	252 x 149 x 62 mm (9.9" x 5.9" x 2.4")	252 x 149 x 62 mm (9.9" x 5.9" x 2.4")	252 x 149 x 62 mm (9.9" x 5.9" x 2.4")
	Enclosure	Aluminum Housing	Aluminum Housing	Aluminum Housing
	Form factor	Regular Size	Regular Size	Regular Size
