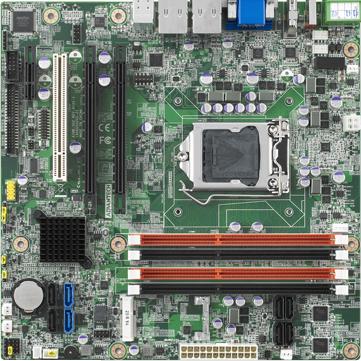

AIMB-502WG2-00A1E |
| Form Factor |
Form Factor |
Micro ATX |
Micro ATX |
| Processor |
CPU |
Intel Core i7-3770 / i7-2600 / i5-3550S / i5-2400 / i3-3220 / i3-2120 / Pentium G2120 / Pentium G850 / Celeron G540 |
Intel Core i7-3770 / i7-2600 / i5-3550S / i5-2400 / i3-3220 / i3-2120 / Pentium G2120 / Pentium G850 / Celeron G540 |
| CPU TDP |
95W / 77W / 65W / 55W |
95W/ 65W |
| Frequency |
2.5GHz ~ 3.4 GHz |
2.9GHz ~ 3.5 GHz |
| Core Number |
2/4 |
2/4 |
| L3 Cache |
2 ~ 8MB |
3 ~ 8MB |
| BIOS |
AMI EFI 64Mbit |
AMI EFI 64Mbit |
| Chipset |
Intel Q77 PCH |
Intel C216 PCH |
| Memory |
Technology |
DDR3 1333/1600 MHz |
DDR3 1333/1600 MHz |
| Max. Capacity |
32 GB |
32 GB |
| ECC Support |
No |
Yes/NO |
| Socket |
4 x 240-pin DIMM |
4 x 240-pin DIMM |
| Display |
Controller |
Intel HD Graphics |
Intel HD Graphics |
| Graphic Engine |
DirectX 11, OpenCL1.1 and OpenGL 3.1 support |
DirectX 11, OpenCL1.1 and OpenGL 3.1 support |
| Graphic Memory |
1GB maximum shared memory with 2GB and above system memory installed |
1GB maximum shared memory with 2GB and above system memory installed |
| VGA |
Up to 2048 x 1563 @ 60Hz |
Up to 2048 x 1563 @ 60Hz |
| LCD (TTL/LVDS/eDP) |
0 |
0 |
| DDI (HDMI/DVI/DisplayPort) |
DVI: 1920 x 1200 @ 60Hz, HDMI: 1.4, up to 1920 x 1080 @ 60Hz |
DVI: 1920 x 1200 @ 60Hz, HDMI: 1.4, up to 1920 x 1080 @ 60Hz |
| Multiple Display |
Dual/ Triple |
Dual/ Triple |
| Expansion |
PCI Express x 16 |
1 |
1 |
| PCI Express x 4 |
0 |
0 |
| PCI |
1 |
1 |
| SMBus |
0 |
0 |
| Ethernet |
Controller |
GbE1: Intel 82579LM, GbE2: Intel 82574L |
GbE1: Intel 82579LM, GbE2: Intel 82574L |
| Speed |
10/ 100/ 1000 Mbps |
10/ 100/ 1000 Mbps |
| Connector |
RJ45 x 2 |
RJ45 x 2 |
| Audio |
Audio Interface |
HD Audio |
HD Audio |
| CODEC |
Realtek ALC892, High Definition Audio (HD) |
Realtek ALC892, High Definition Audio (HD) |
| Connector |
2 (Line out, Mic In) |
2 (Line out, Mic In) |
| Watchdog Timer |
WatchDog Timer |
255 levels timer interval, programmable by software |
255 levels timer interval, programmable by software |
| Storage |
SATA |
6 x SATAII (Max. Data Transfer Rate 300 MB/s), 2 x SATAIII ( (Max. Data Transfer Rate 600 MB/s), 1 x eSATA, 1 mSATA ((Max. Data Transfer Rate 300 MB/s) |
6 x SATAII (Max. Data Transfer Rate 300 MB/s), 2 x SATAIII ( (Max. Data Transfer Rate 600 MB/s), 1 x eSATA, 1 mSATA ((Max. Data Transfer Rate 300 MB/s) |
| RAID |
Software RAID 0, 1, 5, 10 |
Software RAID 0, 1, 5, 10 |
| I/O |
USB3.0 |
4 |
4 |
| USB2.0 |
2 |
2 |
| GPIO |
8-bit GPIO |
8-bit GPIO |
| LPT |
0 |
0 |
| COM Port |
6 ( 5 x RS232, 1 x RS485 via Phoneix connector on rear IO as COM1) |
6 ( 5 x RS232, 1 x RS485 via Phoneix connector on rear IO as COM1) |
| Keypad |
0 |
0 |
| TPM |
Optional |
Optional |
| Smart Fan |
5 |
5 |
| Power |
Power Type |
ATX |
ATX |
| Power Consumption (Idle) |
1.91A @ 5V / 0.27A @ 3.3V / 0.64A @ 12V / 0.16A @ 5Vsb / 0.14A @ -12V |
1A @ 5V / 0.94A @ 3.3V / 0.44A @ 12V / 0.23A @ 5Vsb / 0A @ -12V |
| Power Consumption (Full Load) |
2.88A @ 5V / 1.06A @ 3.3V / 3.3A @12V / 0.36A @ 5Vsb / 0.01A @ -12V |
3.66A @ 5V / 1.05A @ 3.3V / 6.02A @12V / 0.29A @ 5Vsb / 0A @ -12V |
| Battery |
Lithium 3 V / 200 mAh |
Lithium 3 V / 200 mAh |
| Environment |
Operational Temperature |
0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing) |
0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing) |
| Non-Operational Temperature |
-20 ~ 70° C (-4 ~ 158F) and 60° C @ 95% RH Non-Condensing |
-20 ~ 70° C (-4 ~ 158F) and 60° C @ 95% RH Non-Condensing |
| Vibration Resistance |
3.5 Grm (Non-Operation Mode) |
3.5 Grm (Non-Operation Mode) |
| Physical |
Dimension (mm) |
244 x 244 mm |
244 x 244 mm |
| Weight |
1.2 kg (2.64 lb), weight of total package |
1.2 kg (2.64 lb), weight of total package |
| Operating System |
Microsoft Windows |
Yes |
Yes |
| Linux |
Yes |
Yes |
| SUSIAccess |
Yes |
Yes |
| Certification |
EMC |
CE, FCC Class B |
CE, FCC Class B
|
