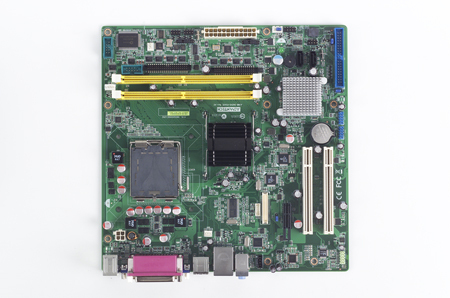

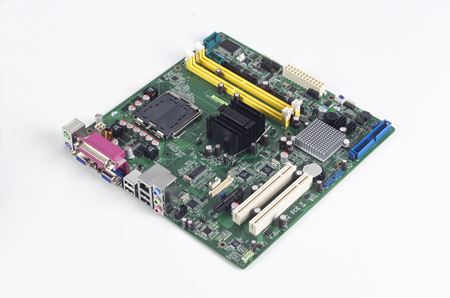

AIMB-562 KIOSK

LGA 775 酷睿? 2 MicroATX主板，支持VGA/LVDS雙顯, 10 COM口, 千兆網口

Main Features

Intel® 945G/945GC 芯片組支持533/800/1066 MHz FSB
DDR2 533/667雙通道內存，支持最高4 GB
支持雙VGA口和24位LVDS面板，板載雙通道3 W 放大器
支持10 個串口, 8 USB, 16位GPIO, TPM 1.2（選購品）
支持嵌入式軟件API和Utlity
數據表(PDF) 技術資料下載

規格表

		AIMB-562L-KSA1E	AIMB-562VG-GRA1E	AIMB-562VG-KSA1E
Form Factor	Form Factor	Micro ATX	Micro ATX	Micro ATX
Processor	CPU	Intel Core 2 Duo E7400 / Pentium Daul-Core E2200 / Pentium 4 651/ Celeron 440	Intel Core 2 Duo E7400 / Pentium Daul-Core E2200 / Pentium 4 651/ Celeron 440	Intel Core 2 Duo E7400 / Pentium Daul-Core E2200 / Pentium 4 651/ Celeron 440
	CPU TDP	86W / 65W	86W / 65W	86W / 65W
	Frequency	2.0GHz ~ 3.4GHz	2.0GHz ~ 3.4GHz	2.0GHz ~ 3.4GHz
	Core Number	1 ~ 2	1 ~ 2	1 ~ 2
	L2 Cache	512KB ~ 4MB	512KB ~ 4MB	512KB ~ 4MB
	BIOS	Award 16Mbit	Award 16Mbit	Award 16Mbit
	Chipset	Intel Q945GC + ICH7	Intel Q945G + ICH7	Intel Q945G + ICH7
Memory	Technology	DDR2 533/667 MHz	DDR2 533/667 MHz	DDR2 533/667 MHz
	Max. Capacity	4 GB	4 GB	4 GB
	ECC Support	No	No	No
	Socket	2 x 240-pin DIMM	2 x 240-pin DIMM	2 x 240-pin DIMM
Display	Controller	Intel Chipset integrated VGA controller (GMA 950)	Intel Chipset integrated VGA controller (GMA 950)	Intel Chipset integrated VGA controller (GMA 950)
	Graphic Engine	DirectX 9 and Open GL 1.4 supported	DirectX 9 and Open GL 1.4 supported	DirectX 9 and Open GL 1.4 supported
	Graphic Memory	Share with system memory up to 224 MB	Share with system memory up to 224 MB	Share with system memory up to 224 MB
	VGA	1 x VGA	2 x VGA	2 x VGA
	LCD (TTL/LVDS/eDP)			LVDS: Single/dual channel 24-bit
	Multiple Display		Dual	Dual
Expansion	PCI Express x 1	1	1	1
Expansion	PCI	2	2	2
Ethernet	Controller	GbE1: RTL8111C	GbE1: RTL8111C	GbE1: RTL8111C
	Speed	10/ 100/ 1000 Mbps	10/ 100/ 1000 Mbps	10/ 100/ 1000 Mbps
	Connector	RJ45 x 1	RJ45 x 1	RJ45 x 1
Audio	Audio Interface	HD Audio	HD Audio	HD Audio
	CODEC	Realtek ALC888	Realtek ALC888	Realtek ALC888
	Connector	2 (Line out, Mic-in)	2 (Line out, Mic-in)	2 (Line out, Mic-in)
Watchdog Timer	WatchDog Timer	Yes	Yes	Yes
Storage	SATA	2 x SATAII (Max. Data Transfer Rate 300 MB/s)	2 x SATAII (Max. Data Transfer Rate 300 MB/s)	2 x SATAII (Max. Data Transfer Rate 300 MB/s)
Storage	IDE	1	1	1
I/O	USB2.0	8	8	8
	GPIO	16-bit GPIO	16-bit GPIO	16-bit GPIO
	LPT	1	1	1
	COM Port	2 ( 2 x RS232)	2 ( 2 x RS232)	2 ( 2 x RS232)
	Keypad	1	1	1
Power	Power Type	ATX	ATX	ATX
	Connector	ATX24P	ATX24P	ATX24P
	Power Consumption (Full Load)	4A @ 5V / 1.02A @ 3.3V / 2.35A @ 12V / 0.26A @ 5Vsb / 0.12A @ -12V	4A @ 5V / 1.02A @ 3.3V / 2.35A @ 12V / 0.26A @ 5Vsb / 0.12A @ -12V	4A @ 5V / 1.02A @ 3.3V / 2.35A @ 12V / 0.26A @ 5Vsb / 0.12A @ -12V
	Battery	Lithium 3 V / 200 mAh	Lithium 3 V / 200 mAh	Lithium 3 V / 200 mAh
Environment	Operational Temperature	0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing)	0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing)	0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing)
	Non-Operational Temperature	-20 ~ 70° C (-4 ~ 158F) and 60° C @ 95% RH Non-Condensing	-20 ~ 70° C (-4 ~ 158F) and 60° C @ 95% RH Non-Condensing	-20 ~ 70° C (-4 ~ 158F) and 60° C @ 95% RH Non-Condensing
	Vibration Resistance	3.5 Grm (Non-Operation Mode)	3.5 Grm (Non-Operation Mode)	3.5 Grm (Non-Operation Mode)
Physical	Dimension (mm)	244 x 244 mm	244 x 244 mm	244 x 244 mm
Physical	Weight	1.2 kg (2.64 lb), weight of total package	1.2 kg (2.64 lb), weight of total package	1.2 kg (2.64 lb), weight of total package
Operating System	Microsoft Windows	Yes	Yes	Yes
	Linux	Yes	Yes	Yes
	SUSIAccess	Yes	Yes	Yes
Certification	EMC	CE, FCC	CE, FCC	CE, FCC
